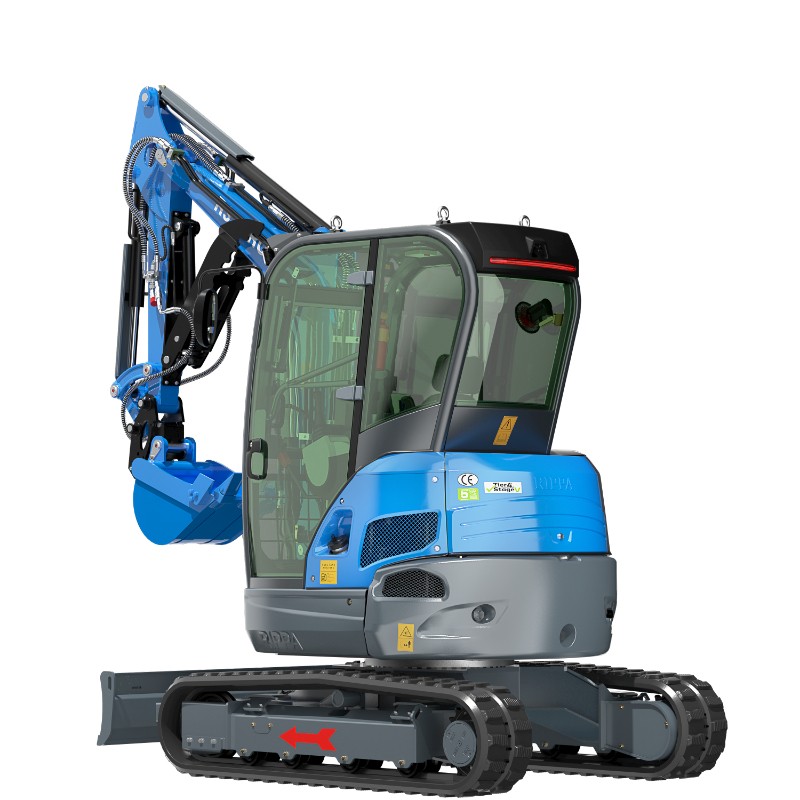

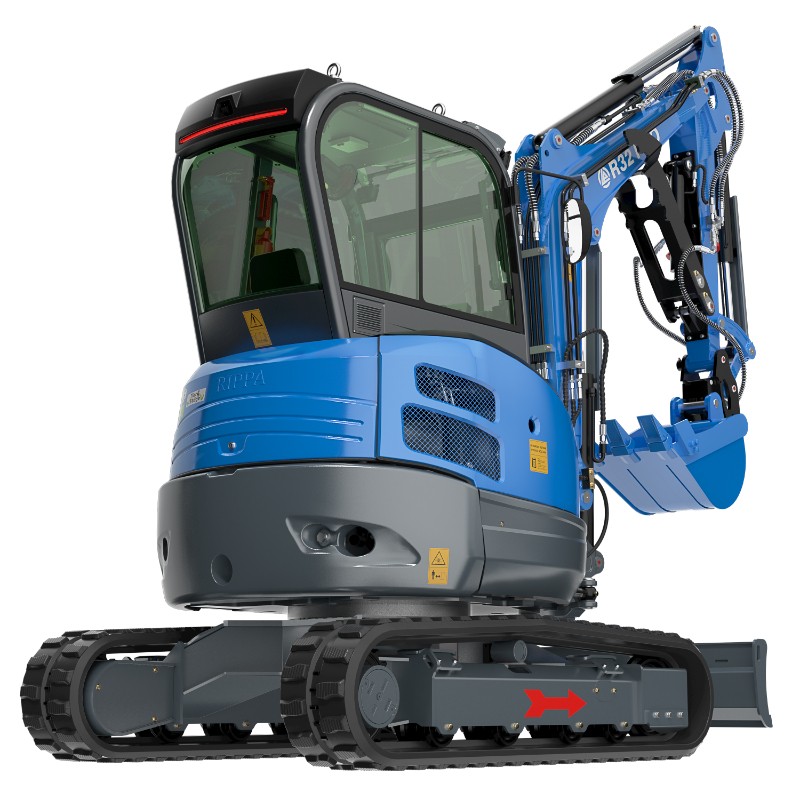

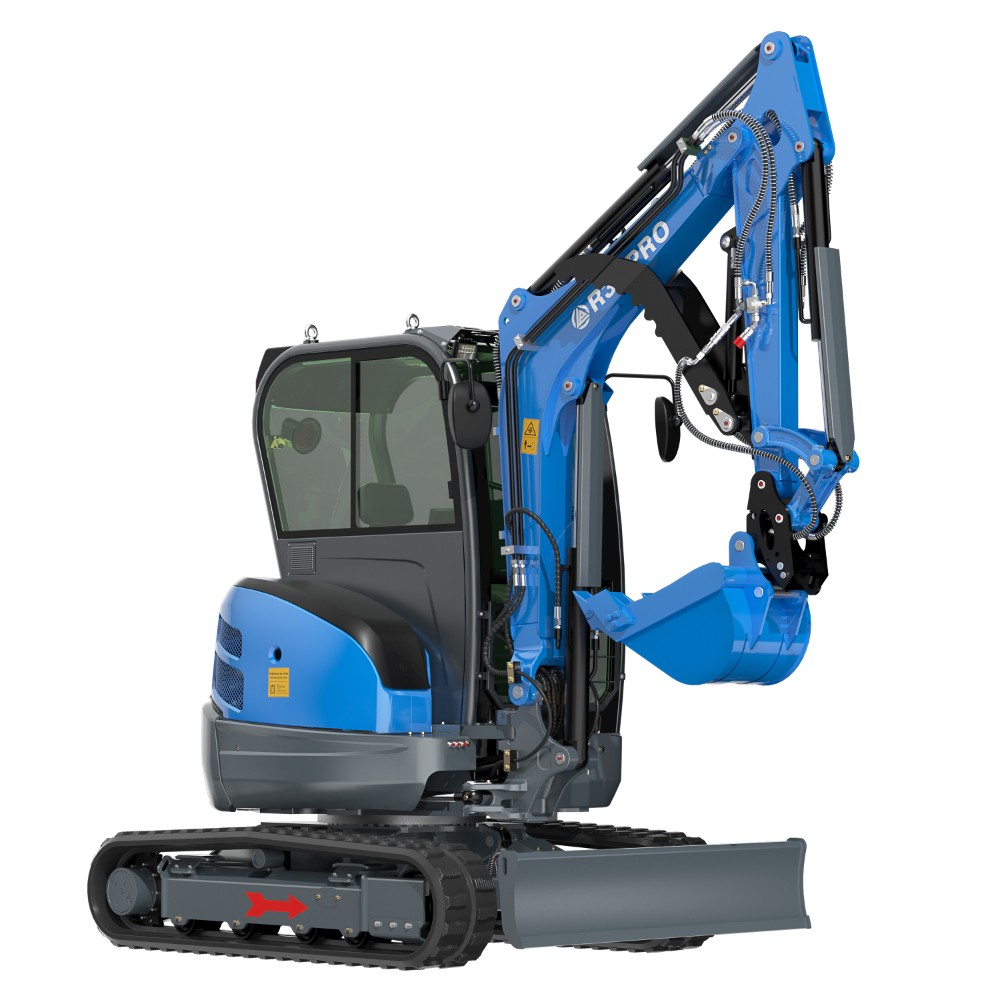

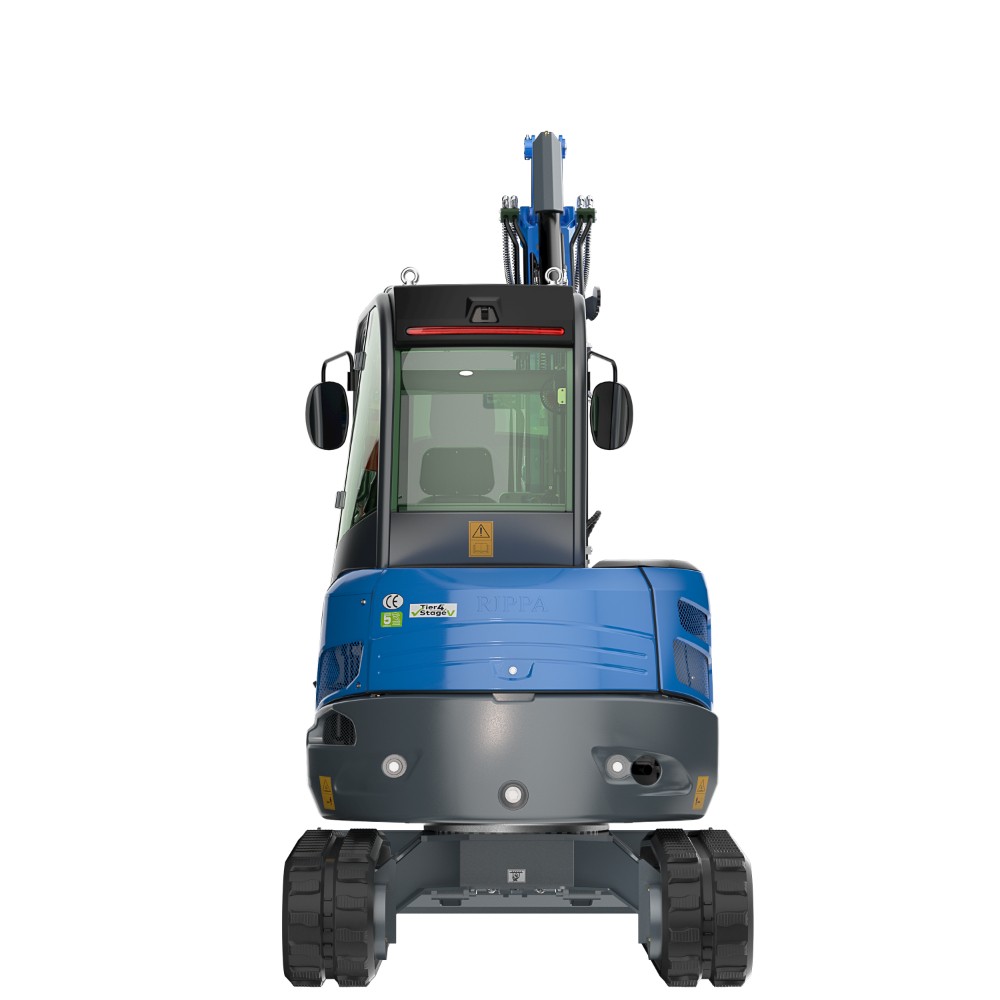

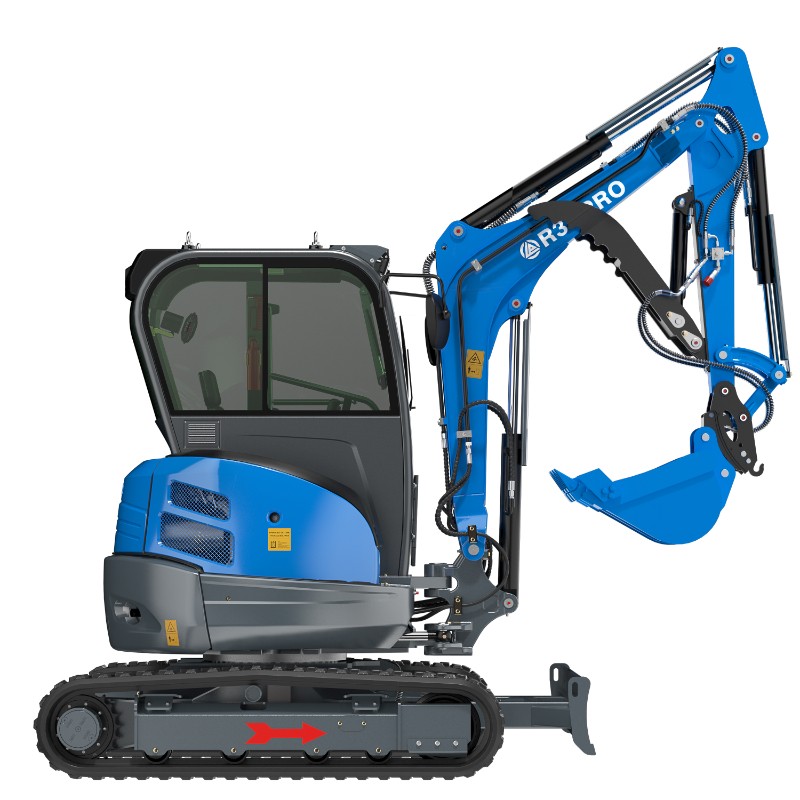

R32
Additional Information
Flexible Financing Offers Available
Description
General
| Machine Working Weight | 7055 lb | 3200 kg |
| Bucket Capacity | 2.83 ft³ | 0.08 m³ |
| Travel Speed (Low / High) | 0–1.0 / 1.7 mph | 0–1.8 / 2.8 km/h |
| Gradeability | 30% | 30% |
| Ground Pressure | 5.2 psi | 36 kPa |
| Maximum Digging Force | 6070 lbf | 27 kN |
| Maximum Digging Radius | 190.2 in | 4831 mm |
| Maximum Digging Depth | 111.3 in | 2827 mm |
| Maximum Digging Height | 179.6 in | 4563 mm |
| Maximum Unloading Height | 125.2 in | 3181 mm |
| Maximum Deflection Angle | 110° | 110° |
| Track Extension Range | N/A | N/A |
Hydraulic System
| Maximum Set Pressure | 2901 psi | 20 MPa |
| Travel Hydraulic Motor Type | LTM03AX | |
| Travel Motor Brand | Likechuan | |
| Motor Displacement | 15.4 / 23.2 ml/r | 15.4 / 23.2 ml/r |
| Slewing Hydraulic Motor Type | Likechuan | |
| Displacement | 18.1 ml/r | 18.1 ml/r |
| Main Pump Type / Model | Load Sensing Variable Piston / 45 | |
| Main Pump Brand | Taifeng Hydraulics | |
| Main Pump Maximum Flow | 26.1 GPM | 99 L/min |
| Multi-Way Valve | Load Sensitive 9-Way Hydraulic Control Valve | |
| Multi-Way Valve Brand | Taifeng Hydraulics | |
| Rated Set Pressure | 2611 psi | 18 MPa |
| Hydraulic Tank Capacity | 7.9 gal | 30 L |
Engine
| Engine Brand | Kubota | |
| Engine Model | V1505 | V1505 |
| Maximum Horsepower | 24.4 hp | 18.2 kW |
| Maximum Speed | 2300 rpm | 2300 rpm |
| Displacement | 91.5 cu in | 1.5 L |
| Number of Cylinders | 4 | 4 |
| Cooling Method | Water Cooled | Water Cooled |
| Engine Oil Capacity | 1.32 gal | 5 L |
| Fuel Type | Diesel | Diesel |
| Fuel Grade | 0 / -10 | 0 / -10 |
| Fuel Tank Capacity | 7.9 gal | 30 L |
Chassis
| Transport Length | 115.2 in | 2921 mm |
| Transport Width | 61 in | 1550 mm |
| Transport Height | 93.3 in | 2369 mm |
| Counterweight Ground Clearance | 20.6 in | 522 mm |
| Bucket Width | 15.7 in | 400 mm |
| Boom Length | 86.6 in | 2200 mm |
| Arm Length | 65.4 in | 1660 mm |
| Bulldozer Blade Width | 61 in | 1550 mm |
